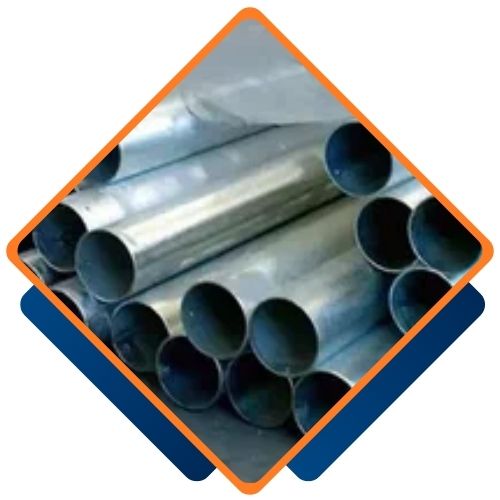

Nestled in the industrial heart of Safat, Kuwait, Lathief Pipes stands as your dedicated partner for high-performance metal solutions. We take particular pride in supplying top-tier Titanium Grade 2 Tubing, a material we trust for its exceptional reliability and durability. Our commitment is to provide industries with not just a product, but a seamless solution that enhances operational efficiency and longevity in demanding environments.
Crafted from unalloyed titanium, Titanium Grade 2 Tubing is known for its excellent balance of strength and ductility, even under stress. It possesses a minimum yield strength of 275 MPa and excellent weldability, making it highly formable for complex installations. Furthermore, its standout feature is an innate, robust resistance to corrosion, particularly against chlorides, which allows it to excel in challenging environments where other metals would falter.
Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| C | Fe | H | N | O | Ti |
|---|---|---|---|---|---|
| max | max | max | max | max | max |
| 0.1 | 0.3 | 0.015 | 0.03 | 0.25 | 99.2 |
| Hardness, Knoop | 170 | 170 | |
|---|---|---|---|
| Hardness, Rockwell B | 80 | 80 | |
| Hardness, Vickers | 145 | 145 | |
| Tensile Strength, Ultimate | 344 MPa | 49900 psi | |
| Tensile Strength, Yield | 275 – 410 MPa | 39900 – 59500 psi | |
| Elongation at Break | 20 % | 20 % | |
| Reduction of Area | 35 % | 35 % | |
| Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
| Compressive Modulus | 110 GPa | 16000 ksi | |
| Poisson’s Ratio | 0.37 | 0.37 | |
| Izod Impact | 114 – 171 J | 84.1 – 126 ft-lb | |
| Fatigue Strength | 300 MPa | 43500 psi | 1E+7 cycles, Unnotched |
| Fatigue Strength | 425 MPa | 61600 psi | 30,000 cycles, Unnotched |
| Fracture Toughness | 66 MPa-m½ | 60.1 ksi-in½ | K(Q); annealed |
| Shear Modulus | 45 GPa | 6530 ksi |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Gr 2 Tubing from Lathief Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Lathief Pipes and Tubes, a leading supplier of Titanium Gr 2 Tubing in Safat, Kuwait, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Lathief Pipes and Tubes, we provide custom sizes of Titanium Gr 2 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Thanks to its unique blend of properties, Titanium Gr 2 Tubing is widely utilized across different industries. In aerospace, it’s used for hydraulic systems, airframe components, and engine parts due to its lightweight strength. The marine sector relies on it for seawater cooling systems, desalination plants, and offshore structures because of its exceptional resistance to saltwater corrosion. In the medical field, it’s employed for implants, surgical instruments, and prosthetics, thanks to its biocompatibility. Additionally, it finds its place in chemical processing, power generation, and heat exchangers, where long-lasting durability and resistance to tough conditions are crucial.
