Home > Stainless Steel > Stainless Steel Condenser Tubing
Nestled in the industrial heart of Safat, Kuwait, Lathief Pipes has built a solid reputation as a trusted name for industrial components. We are a dedicated manufacturer and supplier, proud to provide clients across the region with top-tier Stainless Steel Condenser Tubing. Our products are engineered with precision to meet the demanding requirements of modern industrial applications, ensuring that your systems operate with maximum efficiency and unwavering reliability. When you work with us, you’re choosing a partner committed to quality and performance.
Our Stainless Steel Condenser Tubing is crafted from premium grades known for their exceptional durability. The specific composition is carefully balanced to offer superior resistance to corrosion, even when faced with challenging environments, chemicals, and temperature variations. This careful metallurgical design ensures the tubing maintains its structural integrity over time, providing excellent strength and the ability to withstand high pressures. It’s precisely this robust build that makes it such a reliable, long-lasting solution.
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |

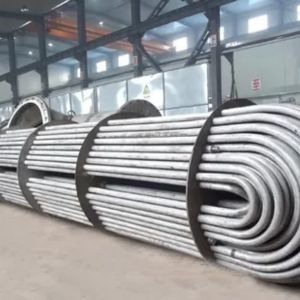

| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |

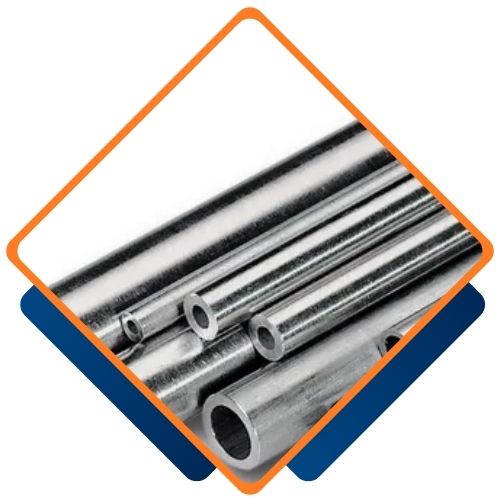

| Form | Seamless, Welded, Hot Rolled, Cold Drawn |

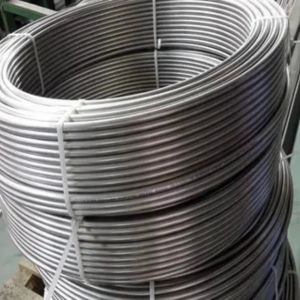

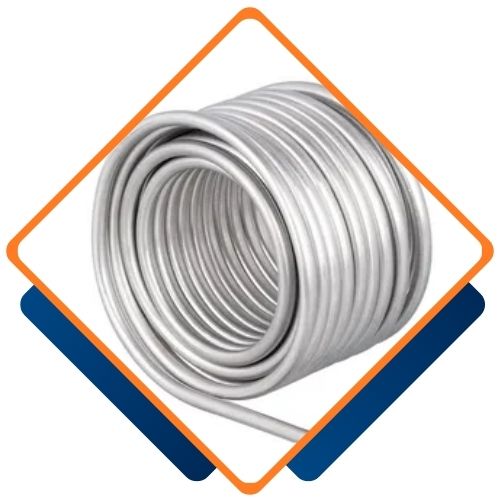

| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP – 304,304L,316,316L,201 |
| STAINLESS STEEL Condenser TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Condenser Tubing from Lathief Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Lathief Pipes and Tubes, one of the largest suppliers of Stainless Steel Condenser Tubing in Safat, Kuwait, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| 12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
| 15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
| 19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
| 25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
| 38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Yes, we offer custom sizes for Stainless Steel Condenser Tubing to meet your specific requirements. Our team at Lathief Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@lathiefpipes.com.

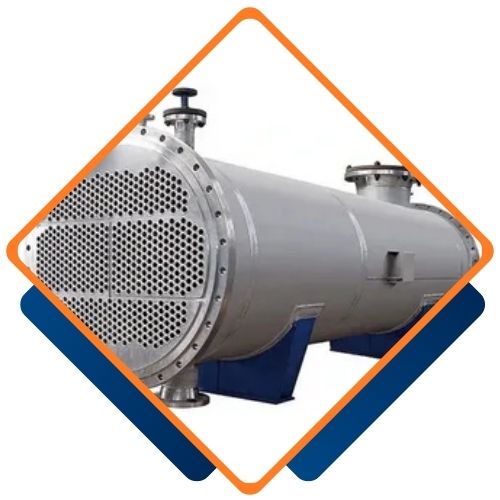

You’ll find Stainless Steel Condenser Tubing widely utilized in industries where effective heat transfer and resistance to corrosive environments are paramount. It’s commonly used in power plants for steam condensers, in petrochemical industries for heat exchangers, and in desalination plants thanks to its seawater corrosion resistance. Marine applications also reap the benefits of its ability to endure saline conditions, ensuring both durability and performance. Furthermore, it’s employed in chemical processing plants, refineries, and HVAC systems where thermal efficiency and structural integrity are crucial. Its versatile performance truly makes it an essential choice for many applications.
