Stainless Steel 347 Pipes

Home > Stainless Steel >Stainless Steel 347 Pipes

Stainless Steel 347 Pipes Manufacturer, Supplier and Exporter in Safat, Kuwait

Nestled in the industrial heart of Safat, Kuwait, Lathief Pipes stands as your dedicated manufacturer and supplier for industrial piping needs. Our focus here is on the exceptional Stainless Steel 347 Pipes, meticulously crafted to meet the demands of challenging environments. We understand that your projects require reliability. That’s why we ensure our 347 Pipes deliver outstanding performance, offering a solution that is both robust and enduring for a wide array of industrial applications, right here from our base in Kuwait.

347 Stainless Steel Pipes Exporter in Kuwait, SS UNS S34700 Pipes Supplier in Hawalli, 347 Stainless Steel Pipe Manufacturer in West Safat, SUS 347 Pipes Price List in Kuwait, ASTM A312 Stainless Steel 347 Pipe Distributor in Safat,Stainless Steel 1.4550 Pipes in Jahra, Stainless Steel TP347 Pipe Exporters in Kuwait

From a composition standpoint, the strength of Stainless Steel 347 comes from a precise blend of chromium, nickel, and a crucial addition: niobium. This niobium acts as a stabilizer, allowing these pipes to excel in high-temperature settings without compromising their structure. Mechanically, they are incredibly tough, providing excellent tensile strength and impressive resistance to creep. This inherent durability makes them especially useful when components face significant stress or thermal cycles, ensuring long-term reliability.

Stainless Steel 347 Pipes Specification

Pipe Standard	ASTM A312 ASME SA312 / ASTM A358 ASME SA358
Pipe Dimension	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Sizes	1 / 2″ NB – 24″ NB
Pipe Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Steel Pipe Manufacturing Process	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Stainless Steel Pipe Shapes	Hydraulic, Round, Rectangle, Square, Hex, Honed
Stainless Steel Pipe Schedule	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipe Ends	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

347 Stainless Steel Pipes Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Cb	Ni	Fe
SS 347	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 20.00	10xC – 1.10	9.00 – 13.00	62.74 min

SS 347 Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
347	515	205	40	95	201

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

SS 347 Schedule 40 Pipe Price List in Safat, Stainless Steel S34700 Pipes Supplier in Hawalli, SS 347 Pipes Price Per Kg, ASTM A312 Stainless Steel 347 Pipe Exporter in West Safat, AISI 347 Pipes Stockist in Safat,1 inch SS 347 Pipe Price List in Jahra, SS 347 Pipe Weight Chart, SS 347 Schedule 20 Pipe Thickness, 347 Austenitic Stainless Steel Pipe Manufacturers in Kuwait

Why Choose Stainless Steel 347 Pipes from Lathief Pipes and Tubes?

Choosing Stainless Steel 347 Pipes from Lathief Pipes and Tubes offers corrosion resistance and excellent durability, ideal for harsh environments. Their pipes are precisely engineered for durability and reliability, conforming to stringent industry standards. Lathief offers solutions tailored to suit specific business requirements, backed by exceptional customer service. Furthermore, their commitment to quality ensures longevity and performance, making them a reliable choice for a variety of applications. Trust Lathief’s expertise in providing quality stainless steel for your needs.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 347 Pipes Supplier in Safat, Kuwait

Lathief Pipes and Tubes, one of the largest suppliers of Stainless Steel 347 Pipes in Safat, Kuwait, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 347 Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

ASME SA 312 TP347 Pipes Safat,Stainless Steel 347 Pipes Exporters in Kuwait, 347 Stainless Steel Pipe Manufacturers in West Safat, SS UNS S34700 Pipes Supplier in Safat, SS 347 Schedule 20 Pipe Stockist in in Jahra, SS 347 Pipes Distributor in Kuwait, 347 Stainless Steel Pipes in Bursa

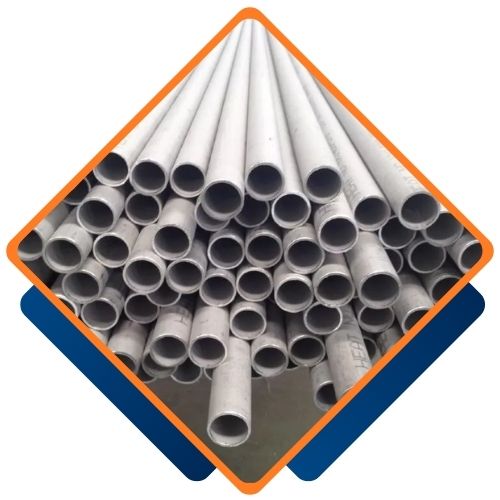

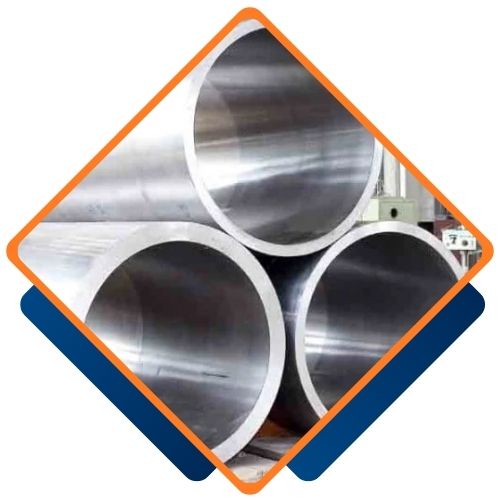

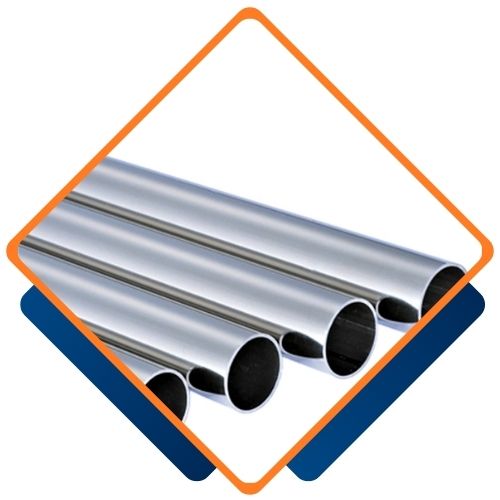

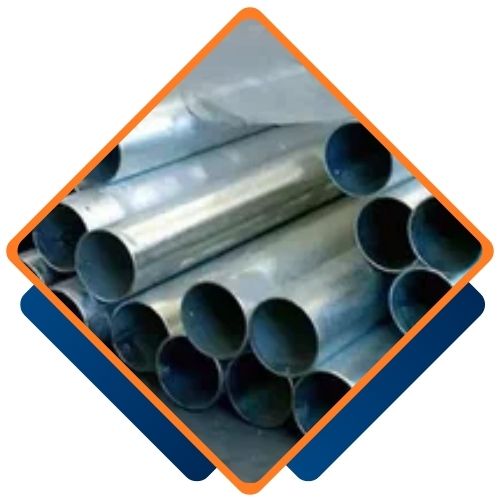

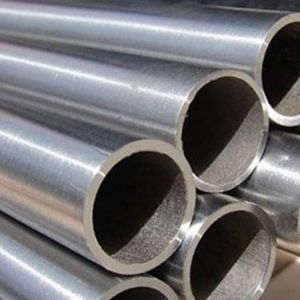

Types of Stainless Steel 347 Pipes

Are Custom Sizes Available for Stainless Steel 347 Pipes?

Yes, we offer custom sizes for Stainless Steel 347 Pipes to meet your specific requirements. Our team at Lathief Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@lathiefpipes.com.

SS UNS S34700 Pipes Exporters in Jahra, ASME SA 312 TP347 Pipes Bodrum , SUS 347 Pipes Distributor in Hawalli, 347 SS Pipes Price Per Kg, 347 Austenitic Stainless Steel Pipe Supplier in Safat, SS 347 Pipe Stockist in Kuwait, Stainless Steel 347 Pipes Dealer in West Safat

Stainless Steel 347 Pipes are widely applied in high-pressure and high-temperature systems like heat exchangers, pressure vessels, furnace parts, boiler tubes, and exhaust manifolds. These tubes are particularly useful in service where there is frequent temperature fluctuation or long-term exposure to heat where other stainless steels can be sensitized. They find application in the chemical, petrochemical, and aerospace sectors where corrosion resistance and structural strength are essential. Stainless Steel 347 provides a trusted alternative for welded construction and equipment for thermal processes used under harsh service conditions.
