Stainless Steel 316Ti EFW Pipes Manufacturer, Supplier and Exporter in Safat, Kuwait

Lathief Pipes is a trustworthy manufacturer and supplier in Safat, Kuwait, for superior quality Stainless Steel 316Ti EFW Pipes that are designed for high-temperature and corrosive services. Fabricated using the Electric Fusion Welding process, these pipes yield excellent weld integrity, homogeneity, and dimensional stability. Stainless Steel 316Ti finds its application in several industries due to the addition of titanium, which stabilizes it against intergranular corrosion and scaling at higher temperatures. At Lathief Pipes, much emphasis is being placed on precision fabrication, tight quality control, and customized specifications to fulfill varied industrial requirements. Due to this reason, 316Ti EFW Pipes are highly preferred in those applications that need long-lasting durability and excellent performance.

Stainless Steel 316Ti EFW Pipes Supplier in Safat, SS 316Ti EFW Pipes Exporter in Hawalli, SS 316Ti EFW Pipe Manufacturer in West Safat, 316Ti Stainless Steel EFW Pipe Price List in Kuwait, Stainless Steel 316Ti EFW Pipes Supplier in Safat,316Ti High Temperature Stainless Steel EFW Pipes in Jahra,1.4571 EFW Pipes Supplier in West Safat

The chemical composition of Stainless Steel 316Ti EFW Pipes includes chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium for stabilization against carbide precipitation. This provides excellent corrosion resistance at high temperatures. Mechanically, 316Ti shows high tensile and yield strength, excellent creep resistance, and very good toughness. EFW welding offers strong joints and uniform wall thickness. All these features make the 316Ti EFW Pipes suitable to operate under harsh service conditions with heat, chemicals, and pressure variations.

Stainless Steel 316Ti EFW Pipes Specification

Specification	ASTM A358 / ASME SA358
Specification	A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5
Grades	304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC.
Type	EFW, ELECTRIC FUSION WELDED
Outer Diameter Size	Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size)
Wall Thickness	Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness)
Length	01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size.
Ends	Plain Ends / Beveled Ends
Delivery Conditions	As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered
Coating	Electropolish, Mechanical Polish, Satin Finish, Passivated
Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Equivalent Grades for Stainless Steel 316Ti EFW Pipes

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
SS 316Ti	S31635	1.4571	Z6CNDT17‐123	X6CrNiMoTi17-12-2	SUS 316Ti	320S31	08Ch17N13M2

316Ti Stainless Steel EFW Pipes Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

SS 316Ti EFW Pipes Mechanical Properties

Grade	Tensile Strength	Yield Strength (0.2%Offset)	Elongation	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
SS 316Ti	Psi – 75000, MPa – 515	Psi – 30000, MPa – 205	35 %	75	205

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

TP 316Ti SS EFW Pipe Supplier in Kuwait, 316Ti Austenitic Stainless Steel EFW Pipes Exporter in West Safat, EFW Pipe Stainless Steel UNS S31635 Manufacturer in Safat,Stainless Steel 316Ti EFW Pipes Supplier in Safat, SS 316Ti schedule 10 EFW Pipe Exporter in Nottingham

Why Choose Stainless Steel 316Ti EFW pipes from Lathief Pipes and Tubes?

Choosing Stainless Steel 316Ti EFW Pipes from Lathief Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 316Ti EFW pipes Supplier in Safat, Kuwait

Lathief Pipes and Tubes, a leading manufacturer and supplier of Stainless Steel 316Ti EFW Pipes in Safat, Kuwait, offers a comprehensive range of high-quality pipes and tubing suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us a trusted choice for regional products.

EFW SS 316Ti Pipes Exporter in Kuwait, SS UNS S31635 EFW Pipe Price List in Safat, SS 316Ti EFW Pipe Supplier in Hawalli, 316Ti SS EFW Pipes Exporter in West Safat, Stainless Steel 1.4571 EFW Pipes Exporter in Safat,SUS 316Ti EFW Pipes Price in Jahra, 316Ti Stainless Steel EFW Pipes Weight Chart, Stainless Steel 316Ti EFW Pipes Thickness, SS S31635 EFW Pipes Supplier in Kuwait

316Ti Stainless Steel EFW Pipe Sizes

NPS Designator	Outside Diameter		Nominal Wall Thickness
	in.	mm	Schedule 5SA		Schedule 10SA		Schedule 40SA		Schedule 80SA
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
8	8.625	219.08	0.109	2.77	0.148	3.76	0.322	8.18	0.500	12.70
10	10.750	273.05	0.134	3.40	0.165	4.19	0.365	9.27	0.500B	12.70B
12	12.750	323.85	0.156	3.96	0.180	4.57	0.375B	9.52B	0.500B	12.70B
14	14.000	355.60	0.156	3.96	0.188B	4.78B	…	…	…	…
16	16.000	406.40	0.165	4.19	0.188B	4.78B	…	…	…	…
18	18.000	457.20	0.165	4.19	0.188B	4.78B	…	…	…	…
20	20.000	508.00	0.188	4.78	0.188B	4.78B	…	…	…	…
22	22.000	558.80	0.188	4.78	0.218B	5.54B	…	…	…	…
24	24.000	609.60	0.218	5.54	0.250	6.35	…	…	…	…
30	30.000	762.00	0.250	6.35	0.312	7.92	…	…	…	…

Physical Properties of SS 316Ti EFW Pipes

Grade	Density(kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100 °C (J/kg.K)	Elec Resistivity (nΩ.m)
Grade	Density(kg/m3)	Elastic Modulus (GPa)	0-100 °C	0-315 °C	0-538 °C	At 100 °C	At 500 °C	Specific Heat 0-100 °C (J/kg.K)	Elec Resistivity (nΩ.m)
316Ti	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

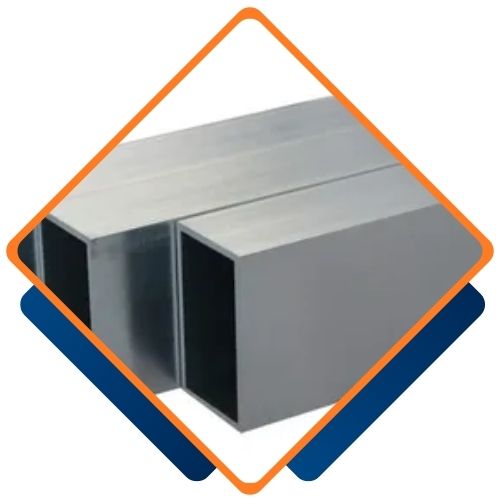

Types of Stainless Steel 316Ti EFW Pipes

Are Custom Sizes Available for Stainless Steel 316Ti EFW Pipes?

We offer custom sizes for Stainless Steel 316Ti EFW Pipes to meet your specific needs. Our dedicated team at Lathief Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@lathiefpipes.com.

SUS 316Ti EFW Pipes Safat,316Ti Stainless Steel EFW Pipe Supplier in Hawalli, ASTM A358 TP316Ti EFW Stainless Pipe Manufacturer in West Safat, TP 316Ti SS EFW Pipe Exporter in Jahra, Stainless Steel 1.4571 EFW Pipes Dealer in Safat, SS 316Ti EFW Pipe Supplier in Kuwait

As a result, SS 316Ti EFW Pipes are widely used in those industrial sectors that require dependable performance in high-temperature service combined with corrosive atmospheres. Typical applications include chemical processing units, petrochemical plants, oil and gas refineries, and power generation systems. Their titanium-stabilized structure makes them suitable for heat exchangers, boiler equipment, and furnace parts. Food, pharmaceutical, and pulp & paper industries also make use of the pipes in handling corrosive and high-purity fluids. Featuring strong weld integrity with excellent thermal stability, 316Ti EFW Pipes provide long service life in critical, heavy-duty industrial environments.
