Home > Incoloy > Incoloy Coil Tubing

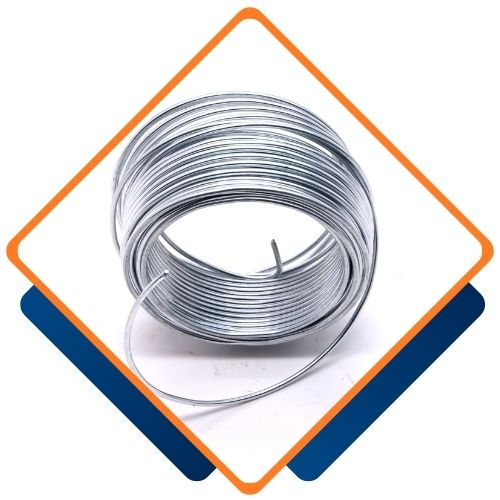

Nestled in the industrial heart of Safat, Kuwait, Lathief Pipes has built a strong reputation for delivering exceptional metal solutions, with a particular expertise in high-performance alloys. We take pride in being your trusted local source for Incoloy coil tubing, a product engineered for the most demanding environments. Our commitment lies in providing not just a product, but a reliable partnership, ensuring you receive coil tubing that meets the highest standards of quality and durability, backed by our knowledgeable support right here in Kuwait.
The outstanding strength of Incoloy coil tubing stems from its sophisticated composition, primarily a nickel-iron-chromium alloy enriched with molybdenum and copper. This specific blend gives the material a remarkable resistance to a wide range of corrosive threats, including acids and chloride-induced stress corrosion cracking. Mechanically, it maintains excellent toughness and retains its structural integrity even when exposed to extreme temperatures, making it a consistently dependable choice where other materials might fail.
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Form | Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded. |
Properties | Metric | Imperial |
Density | 8.14 g/cm³ | 0.294 lb/in³ |
Melting point | 1385°C | 2525°F |
|
Element |
Content (%) |
|
Nickel, Ni |
38-46 |
|
Iron, Fe |
22 |
|
Chromium, Cr |
19.5-23.5 |
|
Molybdenum, Mo |
2.50-3.50 |
|
Copper, Cu |
1.50-3.0 |
|
Manganese, Mn |
1 |
|
Titanium, Ti |
0.60-1.20 |
|
Silicon, Si |
0.50 |
|
Aluminum, Al |
0.20 |
|
Carbon, C |
0.050 |
|
Sulfur, S |
0.030 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy Coil Tubes from Lathief Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Lathief Pipes and Tubes, one of the largest suppliers of Incoloy Coil Tubing in the Safats, Kuwait. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
|
Properties |
Metric |
Imperial |
|
Tensile strength (annealed) |
690 MPa |
100000 psi |
|
Yield strength (annealed) |
310 MPa |
45000 psi |
|
Elongation at break (annealed prior to test) |
45% |
45% |
|
Properties |
Metric |
Imperial |
|
|
Thermal expansion co-efficient (at 20-100°C/68-212°F) |
14 µm/m°C |
7.78 µin/in°F |
|
|
Thermal conductivity |
11.1 W/mK |
77 BTU in/hr.ft².°F |
|
Yes, we provide custom sizes for Incoloy Coil Tubes to meet your specific requirements. At Lathief Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@lathiefpipes.com.
Incoloy Coil Tubing finds its place in various industries that need corrosion-resistant and flexible piping solutions. You’ll often see it in heat exchangers, condensers, chemical and petrochemical plants, marine systems, and power generation facilities. The coiled design facilitates efficient installation in cramped spaces, minimizing the need for complicated fittings and joints. It’s also utilized in reactors, process piping, and thermal systems that face high temperatures and aggressive chemicals. Engineers trust Lathief Pipes for reliable solutions that meet their demanding needs.
