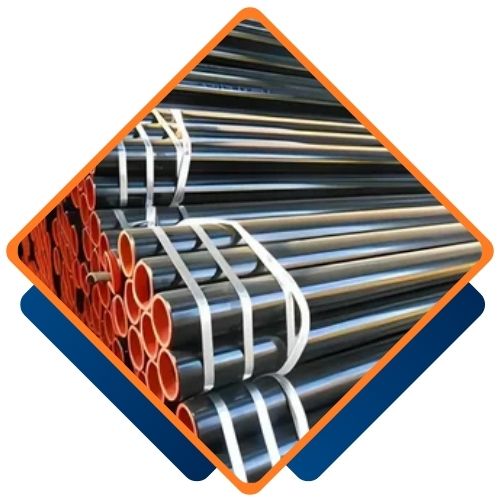

Home > Carbon Steel > Carbon Steel A671 Grade CC70 Pipes
Based in the industrial heart of Safat, Kuwait, Lathief Pipes has built a strong reputation for delivering dependable piping solutions to a wide range of sectors. We take particular pride in our expertise with Carbon Steel A671 Grade CC70 pipes, a product line known for its exceptional reliability in demanding low-temperature environments. Our commitment extends beyond supply to ensuring complete customer assurance, providing materials that meet rigorous standards for critical projects where performance and safety are non-negotiable.
The composition of these pipes is primarily a carbon-manganese steel, carefully balanced to deliver specific mechanical properties essential for low-temperature service. This particular grade is designed to offer excellent notch toughness and strength, even when operating in challenging sub-zero conditions. The chemical makeup ensures good weldability and formability, making it a versatile and practical choice for fabricators who need a material that can handle both the stress of installation and the rigors of long-term operation in cold climates.
|
Ends |
Plain Ends / Beveled Ends / Coupling |
|
Delivery Conditions |
As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered – BR / N / Q /T |
|
Specification |
ASTM A671 /ASME SA671 |
|
Material Test Certificate |
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
|
Type |
EFW (ELECTRIC FUSION WELDED PIPES) |
| Material | A515 Gr 70 |
|
Outer Diameter Size |
16″ NB To 100″ NB (Nominal Bore Size) |
|
Wall Thickness |
Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
|
Packaging |
Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
|
Class Designation |
CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42 |
|
Length |
5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
|
Other Testing |
NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
|
Dimension |
All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
|
Value Added Services |
Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
|
Coating |
Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
|
Shipment & Transportation |
By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes |
| Standards | CC70, JIS JPI-SB49 |
| Specification | Steel grade | Chemical composition | Remarks | |||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ti | |||
| Pipes for pressure service ASTM A671 CC70 | -/A45 | -/0.17 | – | 0.98 | 0.035 | 0.035 | – | A671/ A672 |
| -/A50 | -/0.22 | – | ||||||
| CA55/A55 | 0.28 | – | ||||||
| -/B55 | -/0.20 | 0.13 ~0.45 | ||||||
| CB60/B60 | 0.24 | |||||||
| CB65/B65 | 0.28 | |||||||
| CB70/C70 | 0.31 | 1.30 | ||||||
| -/C55 | -/0.18 | 0.55 ~0.98 | ||||||
| CC60/C60 | 0.21 | |||||||
| CC65/C65 | 0.24 | 0.79 ~1.30 | ||||||
| CC70/C70 | 0.27 | |||||||
| Products | Steel Grade | BASE METAL MECHANICAL COMPOSITION | Welding point tensile strength (N/mm2) | Remarks | |||
|---|---|---|---|---|---|---|---|
| Yield point (N/mm2) | Tensile Stregth (N/mm2) | Test Pieces | Elongation (%) | ||||
| Pipes for pressure service ASTM A671 CC70 | -/A45 | -/165 | -/310~450 | – | -/30 | -/310~450 | A671/ A672 |
| -/A50 | -/185 | -/345~485 | -/28 | -/345~485 | |||
| CA55/A55 | 205 | 380~515 | 27 | 380~515 | |||
| -/B55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
| CB60/B60 | 220 | 415~550 | 25 | 415~550 | |||
| CB65/B65 | 240 | 450~585 | 23 | 450~585 | |||
| CB70/B70 | 260 | 485~620 | 21 | 485~620 | |||
| -/C55 | -/205 | -/380~515 | -/27 | -/380~515 | |||
| CC60/C60 | 220 | 415~550 | 25 | 415~550 | |||
| CC65/C65 | 240 | 450~585 | 23 | 450~585 | |||
| CC70/C70 | 260 | 485~620 | 21 | 485~620 | |||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel A671 Grade CC70 Pipes from Lathief Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
| NB | Size | OD | 40S | 5S | 10S | S10 | S20 | S40 | S60 | XS/80S | S80 | S100 | S120 | S140 | S160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 1/8” | 10.29 | 1.2 | 1.73 | 2.41 | ||||||||||||
| 1/4” | 13.72 | 1.7 | 2.24 | 3.02 | ||||||||||||
| 3/8” | 17.15 | 1.7 | 2.31 | 3.2 | ||||||||||||
| 15 | 1/2” | 21.34 | 2.8 | 1.7 | 2.1 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | ||||||
| 20 | 3/4” | 26.67 | 2.9 | 1.7 | 2.1 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | ||||||
| 25 | 1” | 33.4 | 3.4 | 1.7 | 2.8 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | ||||||
| 32 | 1 1/4” | 42.16 | 3.6 | 1.7 | 2.8 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | ||||||
| 40 | 1 1/2” | 48.26 | 3.7 | 1.7 | 2.8 | 3.68 | 5.08 | 5.08 | 7.14 | 10.2 | ||||||
| 50 | 2” | 60.33 | 3.9 | 1.7 | 2.8 | 3.91 | 5.54 | 5.54 | 9.74 | 11.1 | ||||||
| 65 | 2 1/2” | 73.03 | 5.2 | 2.1 | 3.1 | 5.16 | 7.01 | 7.01 | 9.53 | 14 | ||||||
| 80 | 3” | 88.9 | 5.5 | 2.1 | 3.1 | 5.49 | 7.62 | 7.62 | 11.1 | 15.2 | ||||||
| 90 | 3 1/2” | 101.6 | 5.7 | 2.1 | 3.1 | 5.74 | 8.08 | 8.08 | ||||||||
| 100 | 4” | 114.3 | 6 | 2.1 | 3.1 | 6.02 | 8.56 | 8.56 | 11.1 | 13.5 | 17.1 | |||||
| 125 | 5” | 141.3 | 6.6 | 2.8 | 3.4 | 6.55 | 9.53 | 9.53 | 12.7 | 15.9 | 19.1 | |||||
| 150 | 6” | 168.3 | 7.1 | 2.8 | 3.4 | 7.11 | 10.97 | 11 | 14.3 | 18.3 | 22 | |||||
| 200 | 8” | 219.1 | 8.2 | 2.8 | 3.8 | 6.4 | 8.18 | 10.3 | 12.7 | 12.7 | 15.1 | 19.3 | 20.6 | 23 | 22.2 | |
| 250 | 10” | 273.1 | 9.3 | 3.4 | 4.2 | 6.4 | 9.27 | 12.7 | 12.7 | 15.1 | 19.3 | 21.4 | 25.4 | 28.6 | 25.4 | |
| 300 | 12” | 323.9 | 9.5 | 4 | 4.6 | 6.4 | 10.3 | 14.3 | 12.7 | 17.5 | 21.4 | 25.4 | 28.6 | 33.3 | 25.4 | |
| 350 | 14” | 355.6 | 9.5 | 4 | 4.8 | 6.4 | 7.9 | 11.1 | 15.1 | 12.7 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 | |
| 400 | 16” | 406.4 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 12.7 | 16.7 | 12.7 | 21.4 | 26.2 | 31 | 36.5 | 40.5 | |
| 450 | 18” | 457.2 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 14.3 | 19.1 | 12.7 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 | |
| 500 | 20” | 508 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 15.1 | 20.6 | 12.7 | 26.2 | 32.5 | 38.1 | 44.5 | 50 | |
| 550 | 22” | 558.8 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 22.2 | 12.7 | 28.6 | 34.9 | 41.3 | 47.6 | 54 | ||
| 600 | 24” | 609.6 | 9.5 | 5.5 | 6.4 | 6.4 | 9.5 | 17.5 | 24.6 | 12.7 | 31 | 38.9 | 46 | 52.4 | 59.5 | |
| 650 | 26” | 660.4 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 700 | 28” | 711.2 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 750 | 30” | 762 | 9.5 | 6.4 | 7.9 | 7.9 | 13 | 12.7 | ||||||||
| 800 | 32” | 812.8 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 850 | 34” | 863.6 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 900 | 36” | 914.4 | 9.5 | 7.9 | 13 | 19.1 | 12.7 |
Lathief Pipes and Tubes is one of the largest Carbon Steel A671 Grade CC70 Pipes suppliers in Safat, Kuwait, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
Yes, we offer custom sizes for Carbon Steel A671 Grade CC70 Pipes to meet your specific requirements. Our team at Lathief Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@lathiefpipes.com.
Carbon Steel A671 Grade CC70 Pipes find extensive use in power plants, refineries, and petrochemical facilities for transporting steam, air, oil, and gas under moderate temperature and high-pressure scenarios. They are particularly well-suited for above-ground pipeline systems, pressure vessels, and structural applications where the integrity of electric fusion welds is paramount. These pipes are also utilized in cooling water lines, boiler feedwater systems, and condenser piping. Thanks to their impressive strength, excellent weldability, and toughness, A671 CC70 pipes are a reliable choice for demanding applications.
